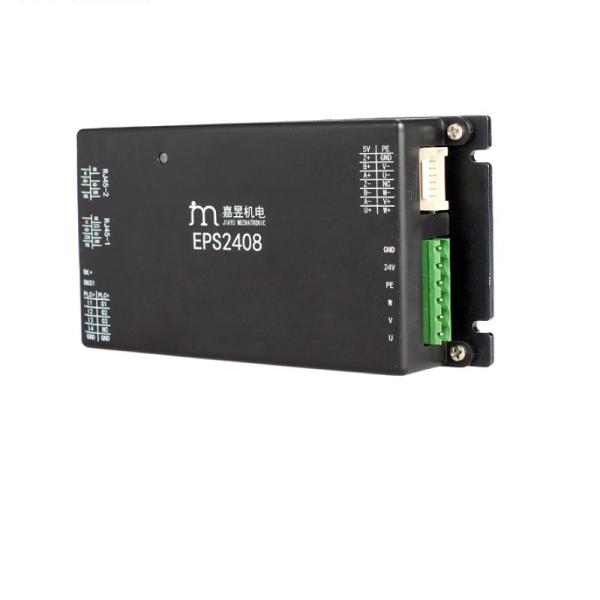

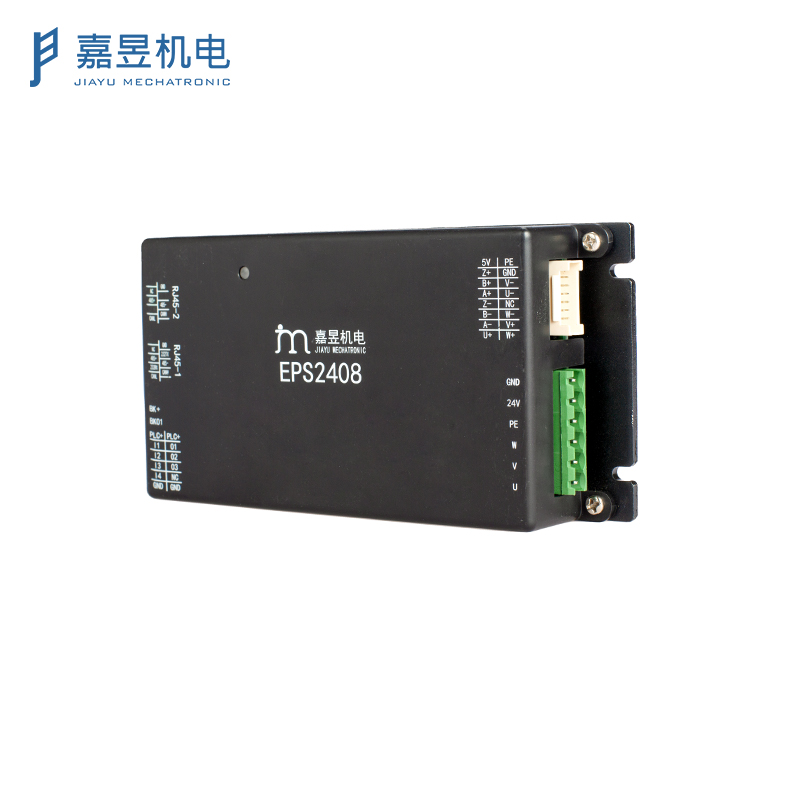

Speed Gate Drive DC 24v 8A with compact design for speed gate

• Adaptive low voltage DC servo motor, incremental encoder feedback interface;
• Integrated industry-leading swing brake and wing brake channel movement module control logic, real-time detection of motion state, to meet the requirements of safe passage;
• For violent brake breaking and other use scenarios, the internal design of a special module to ensure the stable work of the driver and power supply.

Dimension of Speed Gate Drive

Specification of Speed Gate Drive

Brand Name	JIAYU
Model Number	EPS2408-AD
Input Voltage	DC 24 / 48V
Rated / Peak Current	8A / 24A
Feedback	Incremental Encoder with HALL
Incremental Encoder	RS232/RS485/CAN
Digital I/O	4 IN 3 OUT, Optocouplers Isolation
Special Interface	1 output for clutch brake
Hardware Protection	Low Voltage, Over Voltage, Over Current, Overheating
Working Temperature	-20℃ ~ 55℃
Weight	0.2 KG
Application	for Swing Gate / Flap Gate / Sliding Gate etc

FAQ

Q1: Can I install it myself?
A: Yes, it will be easy to install. We will have installation instructions and videos.
Q2: Is the product waterproof?
A: Yes, our products are waterproof and can be used outdoors.
Q3: Are you a distributor or a manufacturer?
A: Hello,we are A manufacturer, the factory sells directly, the price and service have advantages.

Q4: How is the freight calculated?
A: It varies according to the delivery address. For details,you can consult the online
customer service staff.
Q5: How long is the production cycle?
A: Conventional products are basically available in stock, and the production cycle of customized products is about one week.

Shenzhen Jiayu Mechatronic Co., Ltd. was established in 2016. It is a high-tech enterprise with a number of invention patents and software copyrights such as servo drives and turnstile gate control technology.

Jiayu Mechatronic is committed to the R&D, production and sales of core modules of turnstile gate accessories. It is a newly emerging core module supplier in the turnstile control industry and provides customers with professional customized products and services.

The company's technology comes from mature domestic and foreign technology transfer and independent research and development, and the products have been fully localized.

Since its establishment, the company has won the recognition and support of customers with its "excellent quality and honest service". Now the factory covers an area of ​​more than 2,800 square meters and has an annual production capacity of 50,000 sets of turnstile control electronics. It has passed the ISO9001 quality system certification. The company has transformed from the previous OEM/ODM OEM to a manufacturer with its own brand.
