1500r/min Barrier Gate Motor 120W 6A , 0.3s - 0.8s Boom Barrier Gate Mechanism

Ask Lasest Price
Brand Name :	Jiayu
Price :	Negotiable
Certification :	CE
Delivery Time :	10-15days after payment
Payment Terms :	TT
Supply Ability :	500pcs per month
Model Number :	JY-DZ-CB-01

Add to Cart

Product Details
Company Profile

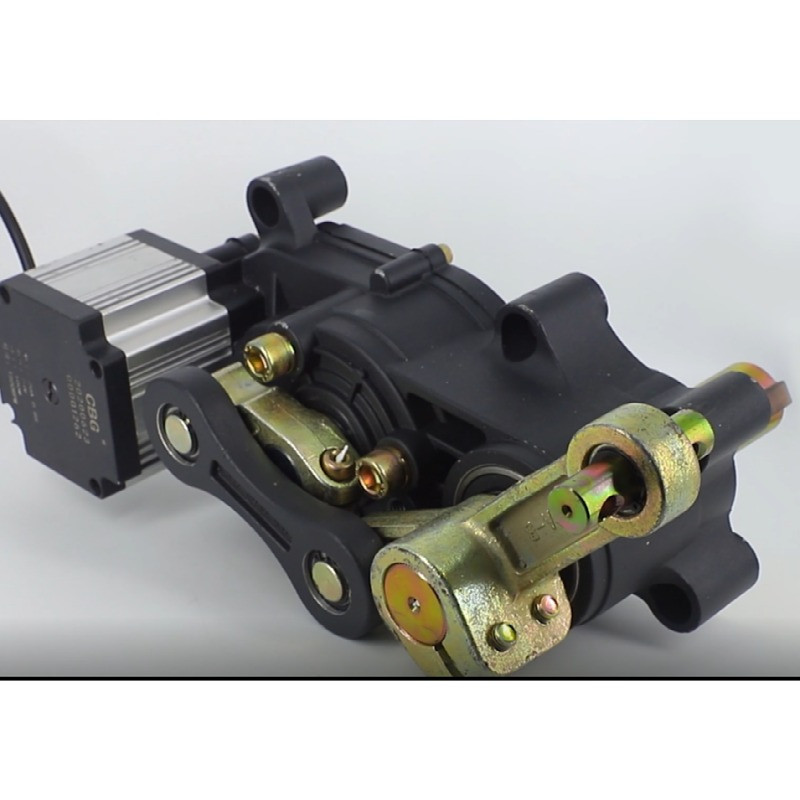

1500r/min Barrier Gate Motor 120W 6A , 0.3s - 0.8s Boom Barrier Gate Mechanism

Barrier Gate Motor 6A 120W 1500r/min 0.3s-0.8s boom barrier gate mechanism

Product performance characteristics of boom Barrier Gate Motor
1) The movement adopts side stick installation, which is easy to install and compact in structure.
2) The main body of the movement is made of aluminum alloy by die-casting process, with reliable mechanical strength, beautiful appearance, accurate size and good heat dissipation.
3) The movement adopts gear reduction drive, which has high transmission efficiency and small power output loss;Gear material SCM421, carburizing heat treatment process, precision gear grinding, wear resistance, impact resistance, service life far beyond the worm gear transmission structure.
4) The movement adopts the BRUShless DC motor, with large output torque and small volume. The speed can be adjusted arbitrarily by the controller, and the deceleration buffer can be realized when the falling rod and lifting rod are in place, so that the brake rod can be in place smoothly.
5) The motor adopts DC24V safety voltage, which can avoid electric shock accident caused by electric leakage and ensure personal safety.

Dimension of boom Barrier Gate Motor

1500r/min Barrier Gate Motor 120W 6A , 0.3s - 0.8s Boom Barrier Gate Mechanism

Specification of boom Barrier Gate Motor

Rated voltage	24VDC
Rated power	120w
Continuous rated speed	2000rpm
Continuous rated current	6A
Peak current	12A
Output speed	17rpm
Output torque	1.5Kgf..m
Lifting time	0.3~0.8S
Encoder resolution	12000ppr
appilication	barrier gate,gate

Boom Barriers – Auto Operated

Barriers are designed & best choice for entrances where there are high security requirements. The stopping barrier is designed for crash resistance through strong foundation & structure.

The boom Barriers are the most suitable solution for various security applications. Widely used in Military sites, Governmental places, Embassies, Public & Private properties.

1500r/min Barrier Gate Motor 120W 6A , 0.3s - 0.8s Boom Barrier Gate Mechanism

Company profille

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology.

Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers. The company's technology stems from mature domestic and foreign technology transfer and independent research and development.

The products are localized and the core technology is independently controllable. The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains.

In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.

RFQ

1. Are you Factory or Trader?
We are factory,and have professional R&D team as introduced in company information.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.

4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate control technology.
Committed to the R&D,production,sales and pre-sales and after-sales service of the core module of the automatic gate control movement.

5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,
Professional solutions in installation and maintance.

6. Do you get the relevant certifications?
All products are made according to ISO9001, CE requirements.

7. How about the delivery?
－Sample: 3-5 days,
－Bulk order: 15-30 days.
