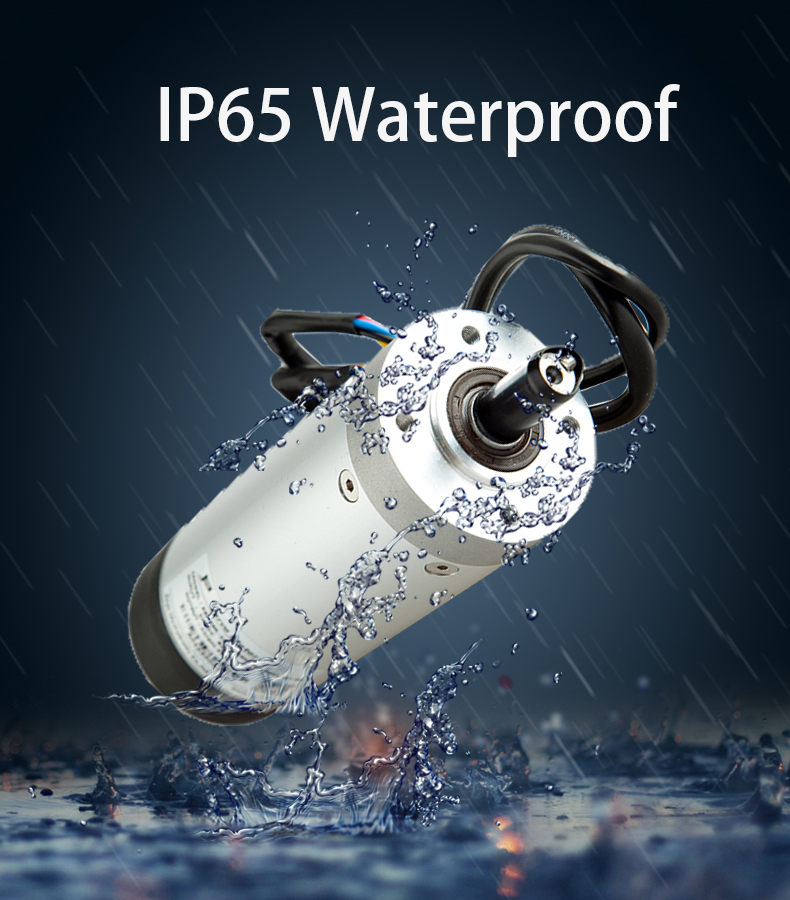

24V DC Servo motor with incremental encoder 0.5 nm for swing barrier gate

Product description of 24V DC Servo motor

turnstile servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.

Advantages of 24V DC Servo motor

• High-resolution position feedback with 2400 lines can realize accurate positioning Service life is not less than
• 6 million times. Authoritative appraisal by third party testing institution.
• 300mm acrylic door panel, opening time up to 0.3 seconds.
• Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.

Why choose us

1. Our price is reasonable;

2. We can accept small orders;

3. Sample order delivery time is in 5 days, mass quantity order lead time is 7-10 days;

4. We can accept payment via paypal, T/T and L/C;

5. Our products quality assurance is 1 year, and we can provide you professional technical support;

6. We accept products customize.

Dimension of 24V DC Servo motor

Specification of 24V DC Servo motor

Model Number	EBS59R-100A-20XP4E-B6EL-S1-00
Type	SERVO MOTOR
Torque	23N.m
Construction	Permanent Magnet
Speed(RPM)	2000rpm
Continuous Current(A)	6A
Rated voltage	24VDC
Rated power	100Watt
Continuous rated speed	2000rpm
Continuous rated torque	0.5N.m
Output speed	41rpm
Encoder resolution	9600ppr
Weight of motor	1.3kg

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers. In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.

Shenzhen Jiayu Mechatronic Co., Ltd. was established in 2016. It is a high-tech enterprise with a number of invention patents and software copyrights such as servo drives and turnstile gate control technology.

Jiayu Mechatronic is committed to the R&D, production and sales of core modules of turnstile gate accessories. It is a newly emerging core module supplier in the turnstile control industry and provides customers with professional customized products and services.

The company's technology comes from mature domestic and foreign technology transfer and independent research and development, and the products have been fully localized.

Since its establishment, the company has won the recognition and support of customers with its "excellent quality and honest service". Now the factory covers an area of ​​more than 2,800 square meters and has an annual production capacity of 50,000 sets of turnstile control electronics. It has passed the ISO9001 quality system certification. The company has transformed from the previous OEM/ODM OEM to a manufacturer with its own brand.

Our Mission

Make the channel more convenient;
Make traffic safer.

Main Products Lines

♦ Speed gate servo motor

♦ Swing barrier gate servo motor

♦ Flap barrier gate servo motor

♦ Tripod turnstile servo motor

♦ Sliding gate turnstile servo motor

♦ Speed gate servo drive

♦ Swing barrier gate servo drive

♦ Flap barrier gate servo drive

♦ Tripod turnstile servo drive

♦ Sliding gate turnstile servo drive

♦ Speed gate servo controller

♦ Swing barrier gate servo controller

♦ Flap barrier gate servo controller

♦ Tripod turnstile servo controller

♦ Sliding gate turnstile servo controller

JIAYU In Brief

♦ Over 2800 sq. m of production & office space

♦ A modern manufacturing plant in China

♦ Owning warehouses in Shenzhen

♦ Servo controller with 3,6,8,12,16,24,32 pairs of infrared plus light curtain combination logic, covering the needs of different industries

♦  It has passed the ISO9001 quality system certification. The company has transformed from the previous OEM/ODM OEM to a manufacturer with its own brand

♦ More than 60-strong team of qualified professionals

♦ Sales in 50 countries worldwide

♦ Floor 503, Qunhui Road No.25, Zone 72, Xingdong Community, Xin 'an Street, Bao 'an District, Shenzhen city, Guangdong Province, China.
