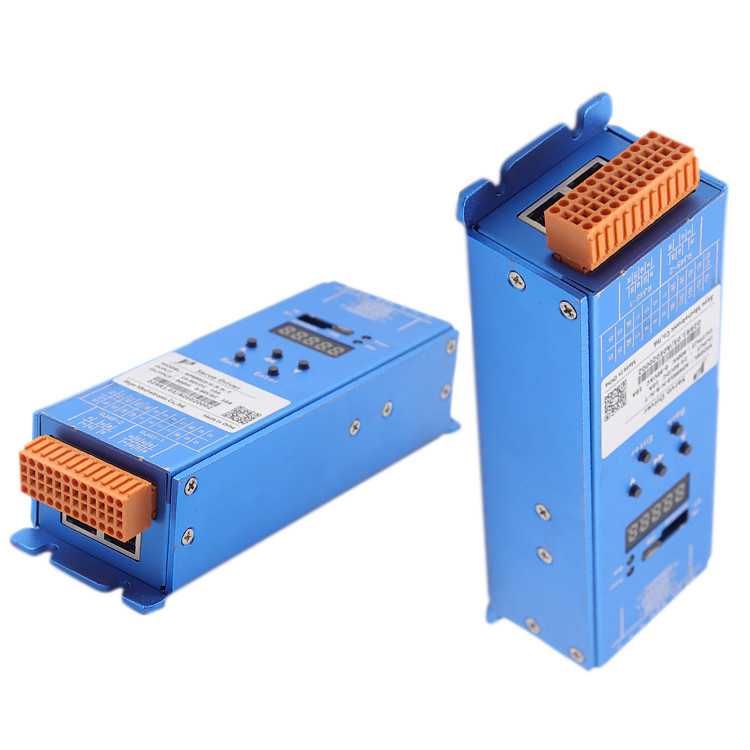

10S Turnstile 80V DC Servo Drive

Ask Lasest Price
Certification :	CE
Brand Name :	Jiayu
Model Number :	APS8010
Price :	Negotiable
Delivery Time :	10-15days after payment
Payment Terms :	TT
Supply Ability :	500pcs per month

Add to Cart

Product Details
Company Profile

10S Turnstile 80V DC Servo Drive

24v to 80V DC Servo Drive for Tripod Turnstile Series

Features

Suitable for low voltage DC servo motor, standard for incremental encoder feedback interface, and absolute encoder feedback interface version;
Integrated industry-leading channel movement control logic, real-time detection of movement status, to meet the requirements of safe passage;
For violent brake breaking and other use scenarios, the internal design of a special circuit to ensure the stable work of the driver and power supply.
It supports RS232, RS485, CAN and other communication modes, provides Modbus communication protocol, and CAN interconnect with channel controller.
Supporting digital key box, LCD key box and other debugging tools;

Specification

item	value
Warranty	3months-1year
Certification	CE
Model Number	APS8010
Power Input	24 ~ 80 VDC
Rated/Peak Current	10 / 30 Arms
Overload	300%, continuous time 10S
Braking Unit	Built-in resistance, 12W
Feedback	HALLU,HALLV,HALLW,EA,EB,EZ Incremental encoder, +5VDC
DIP Switch	8 DIP, including S1 as CAN-resistance enable (120Ω)
Communication	RJ45 ports are included RS232, RS485, CAN

Applications

① Airports

② Ports

③ Railway station

④ Subway station

⑤ Bus station

⑥ Commercial building

⑦ Residential communities

⑧ School

⑨ Expressway station

Advantages

According to the narrow side appearance specially designed for the channel gate structure, the appropriate installation position can be selected according to the whole machine structure.
Support single machine operation, to meet the control requirements of unilateral structure;
Suitable for swing brake, wing brake and other standard channel brake;
Supporting JMC1514 channel controller, forming the industry-leading channel gate electronic control system;
Provide control protocol, can be adapted to the third party control board;

1. Provide normally open / normally close to satisfy management request.

2. 300mm acrylic door panel, opening time up to 0.3 seconds

3. Equipped with encoder feedback interface.

4. One direction or bi-direction is optional.
