70mm High Resolution 1800rpm BLDC Servo Motor Brushless Integrated Gearboxes

Ask Lasest Price
Brand Name :	Jiayu
Model Number :	MBS70ZF-40A-1836
Certification :	CE
Price :	Negotiable
Payment Terms :	TT
Supply Ability :	500pcs per month
Delivery Time :	10-15days after payment

Add to Cart

Product Details
Company Profile

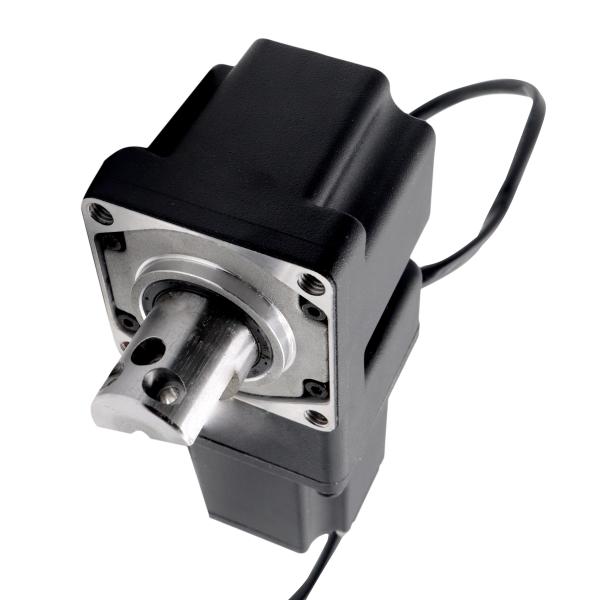

70mm High Resolution 1800rpm BLDC Servo Motor Brushless Integrated Gearboxes

High-resolution position feedback 1800rpm 24VDC bldc servo motor integrated gearboxes for swing gate

Product description

swing gate motor MBS70ZF series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.

Features

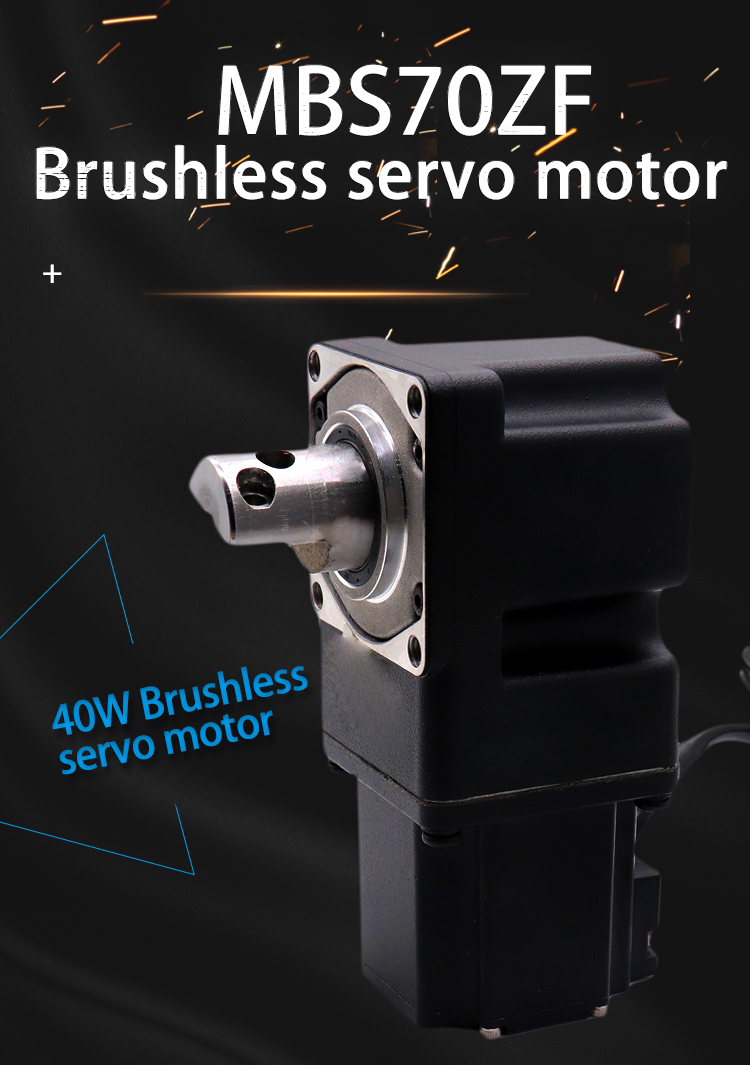

40W Brushless servo motor work with 24V power supply.

High-resolution position feedback with 2400 lines can realize accurate positioning with 12,000 pulses in a single turn, the resolution is 400 times higher than that of traditional brushless motors.
The widest part of the motor is 70 mm, and the double movement structure saves the width space occupied by the motor, only 140 mm. The highest part of the motor is 71 mm, greatly saving the top space of the cabinet.
D type motor shaft, easy to install; The motor shaft is thickened to 30 mm to prevent the violent break-in from damaging the shaft.
Rated speed of motor with 1:36 reduction ratio, rated output torque up to 5.5NM.
The inner gear uses high strength butterfly gear to resist impact.
With servo overload characteristics, can achieve 2 times current overload, strong push resistance than the brushless motor.

Advantages

High-resolution position feedback with 2400 lines
With servo closed loop control, can achieve 2 times current overload, strong push resistance is greater than the brushless force.
300mm acrylic door panel, opening time up to 0.4 seconds
Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.

Specificaiton

Model Number	MBS70ZF-40A-1836
Type	Brushless Motor
Torque	0.21nm
Protect Feature	Drip-proof
Speed(RPM)	1800rpm
Continuous Current(A)	3A
Efficiency	IE 2
Rated speed	1800rpm
Rated voltage	24VDC
Rated Power	40w
Motor Diameter	70mm
Keywords	Long Life Low Noise
Rated torque	0.21nm
Encoder lines	2400lines
Motor Features	High Speed
Brush Type	brushless
Ratio	1:36

70mm High Resolution 1800rpm BLDC Servo Motor Brushless Integrated Gearboxes

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample order by low charging than order.

Q: What is your terms of payment ?

A: 100%TT in advance, 30% T/T in advance ,balance before shipment.
